Molybdenum Foil With 99.95% Purity Applied in Electronics

Name: Molybdenum Foil With 9995 Purity Applied in Electronics
Brand: Sanhui
Price: 60 USD

China Molybdenum Foil With 99.95% Purity Applied in Electronics wholesale

Brand Name : Sanhui

Model Number : Mo1

Certification : ISO 9001:2008

Place of Origin : Henan, China

MOQ : 5 kgs

Price : USD 60-100 per kg

Payment Terms : D/A, D/P, T/T, Western Union

Supply Ability : 500kgs per month

Delivery Time : 15-20 days

Packaging Details : plywood case

Name : Molybdenum Foil

Application : furnace tooling

Surface : Cold rolled

Condition of molybdenum foil : Vacuum Anneal and un-annealed

Contact Now

Molybdenum Foil With 99.95% Purity Applied in Electronics

Specifications of Mo foil

1. Molybdenum Foil Purity: purity> 99.95%
2. Appearance: Black or polished,hot roll or cold roll

3. specification:0.025~0.09*W*L
4. surface:cold rolled
5. condition of molybdenum foil :Vacuum Anneal and un-annealed

Molybdenum foil chemical compositions

Type	Chemical composition(%)
Type	Mo	Impurity
Mo1	>=99.95	<=0.05
Mo2	>=99.9	<=0.10

Molybdenum foil dimensions and tolerance:(mm)

Thickness	Thickness tolerance		Width	Width tolerance	Length	Length tolerance
Thickness	Class I	Class II	Width	Width tolerance	Length	Length tolerance
0.1-0.15	±0.01	±0.02
>0.30-0.30	±0.02	±0.03	50-250	±2	100-1000	±5
>0.30-0.50	±0.03	±0.04
>0.50-0.70	±0.04	±0.05
>0.70-1.0	±0.05	±0.08	50-800	±3
>1.0-2.0	±0.06	±0.10
>2.0-3.0	±0.08	±0.15
>3.0-4.0	±0.10	±0.20
>4.0-5.0	±0.12	±0.30

2. Guaranteed purity.

You can rely on our quality. We produce our molybdenum foil ourselves – from the metal oxide right through to the finished product. As our input material, we use only the purest molybdenum oxide. This ensures that you benefit from a very high level of material purity.

Molybdenum Foil With 99.95% Purity Applied in Electronics

Product Tags:

99.95% pure moly foil

cold rolled moly products

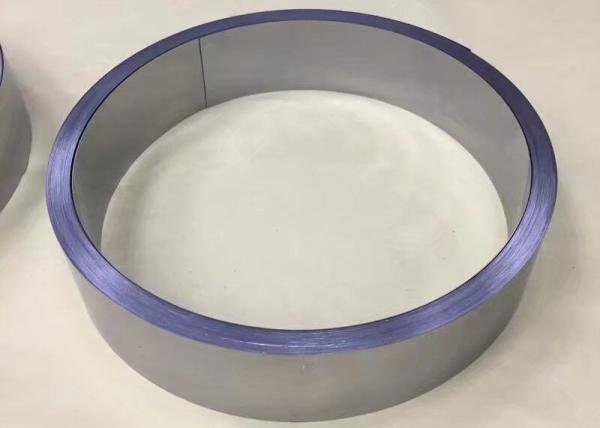

Molybdenum Foil With 99.95% Purity Applied in Electronics Images
