Molybdenum. The all-rounder among the specialists.
With its unique mechanical and chemical properties, molybdenum is an outstanding material that can meet the most exacting requirements. Because molybdenum possesses a very high melting point, a low coefficient of thermal expansion and a high level of thermal conductivity, it is used in many different industries.
Molybdenum is a genuine all-rounder. We use this material, for example, to produce ribbons and wires for the lighting industry, semiconductor base plates for power electronics, glass melting electrodes, hot zones for high-temperature furnaces and sputtering targets for coating solar cells and flat screens.

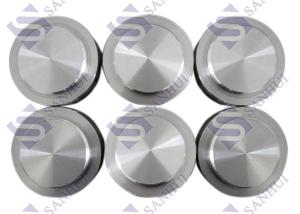

Technical Parameters of Molybdenum Sputtering Target
| Molybdenum Target |
| Diameter | Thickness | Material |
| mm | inch | mm | inch |
| 20 | 0.79 | 3 | 0.12 | Silicon |
| 25 | 0.98 | 3 | 0.12 | Silicon |
| 30 | 1.18 | 3 | 0.12 | Silicon |
| 20 | 0.79 | 3 | 0.12 | molybdenum |
| 25 | 0.98 | 3 | 0.12 | molybdenum |
| 30 | 1.18 | 3 | 0.12 | molybdenum |
Guaranteed purity.
You can rely on our quality. We produce our molybdenum products ourselves – from the metal oxide right through to the finished product. As our input material, we use only the purest molybdenum oxide. This ensures that you benefit from a very high level of material purity.
| TEST REPORT (MO≥ 99.95%) |
| Si<0.002 | K | S |
| Al<0.0006 | Na | C |
| Fe<0.004 | Ca<0.0015 | O < 0.008 |
| Cu | Pb<0.0003 | N < 0.002 |
| Mg<0.0007 | Bi<0.0003 | |
| Ni<0.002 | Sn<0.0002 | |
| Mn | Sb<0.0005 | |
| P<0.001 | Cd<0.0003 | |
Pure molybdenum - or maybe an alloy? It's your choice.
We prepare our molybdenum to perform perfectly in every application. We can determine the following properties through the addition of various alloys:
- Physical properties (e.g. melting point, vapor pressure, density, electrical conductivity, thermal conductivity, thermal expansion, heat capacity)
- Mechanical properties (e.g. strength, fracture behavior, creep resistance, ductility)
- Chemical properties (corrosion resistance, etchability)
- Machinability (e.g. cutting processes, formability, weldability)
- Recrystallization behavior (recrystallization temperature, embrittlement, aging effects)
And there's more: By using our own customized manufacturing processes, we can modulate various other properties of molybdenum across a wide range of values. The result: Molybdenum alloys with different ranges of properties which are precisely engineered to meet the requirements of each individual application.
